High Speed Aluminum Slitter Rewinder

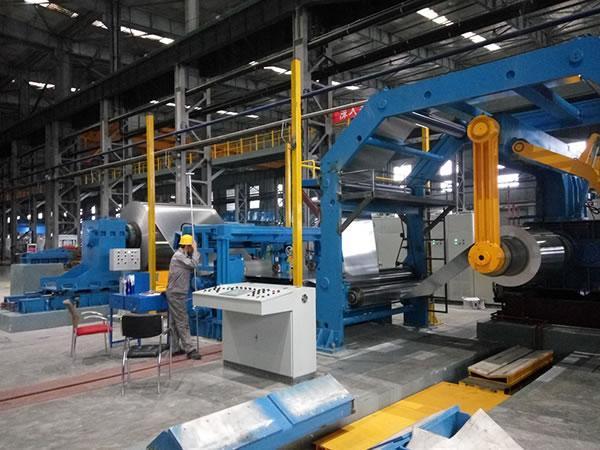

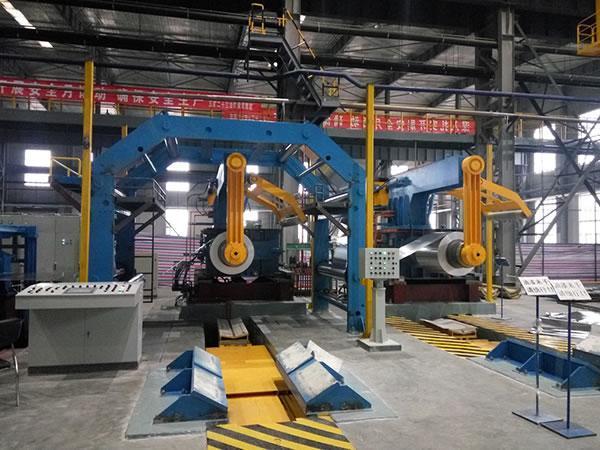

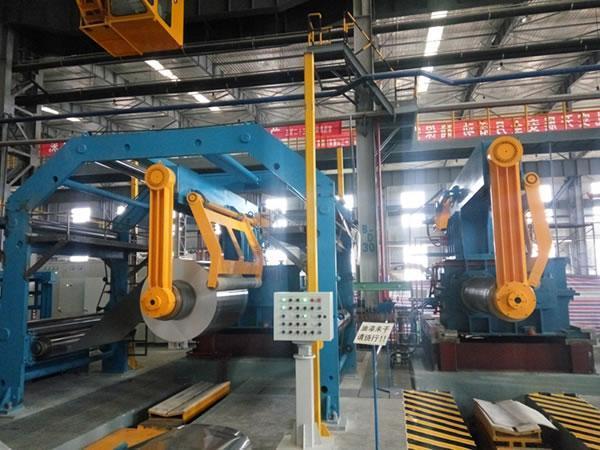

2200mm high speed aluminum slitter

High speed aluminum slitter rewinder is suitable for slitting 1000, 3000, 5000, and 8000 series alloy plates into narrow aluminum strips. The raw plates to be processed range in thickness from 0.15mm to 0.6mm, and should be no wider than 2030mm.

This aluminum slitting machine runs at 400m/min. Width of the finished product is between 700mm and 1025mm.

Aluminum Slitter Rewinder Specification
2200mm High Speed Aluminum Slitter Rewinder
Aluminum and Aluminum alloy: 1xxx, 3xxx, 5xxx, and 8xxx series
Number of cuts 2
Thickness (raw material) (mm) 0.15-0.6
Width (raw material) (mm) 2030 (max)
Width (finished product) (mm) 700-1025
Coil outer diameter (mm) Ф2500
Highest speed (m/min) 400

Brief Description
Hongye offers aluminum finishing equipment for aluminum sheet coil separating to be small coils and rewind the coil with leveling processes, all processes are finished by machines as slitting rewinder, aluminum slitter, aluminum sheet liner, finished equipment is used after aluminum ingots become sheet and foil coils by aluminum processing as hot rolling and cold rolling mill.
