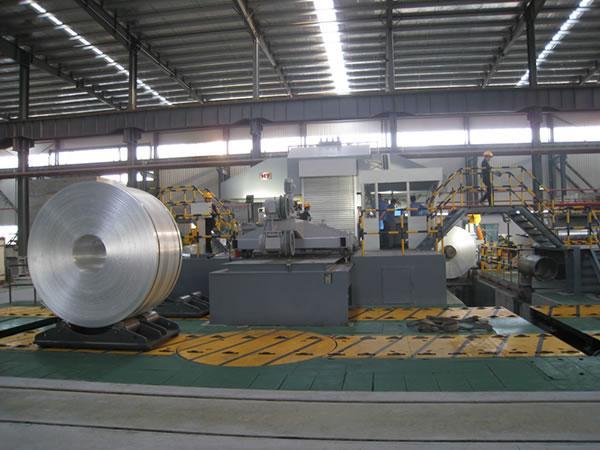

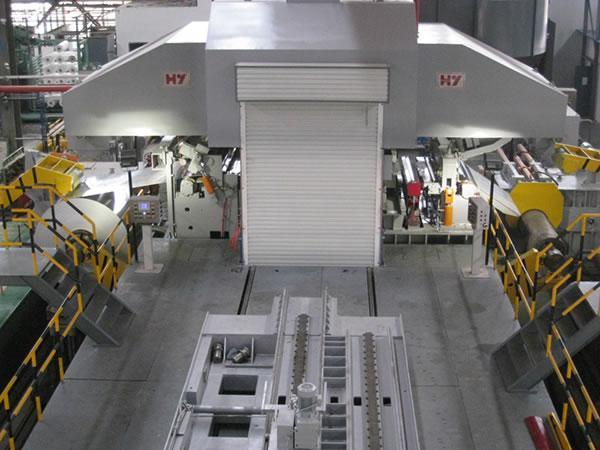

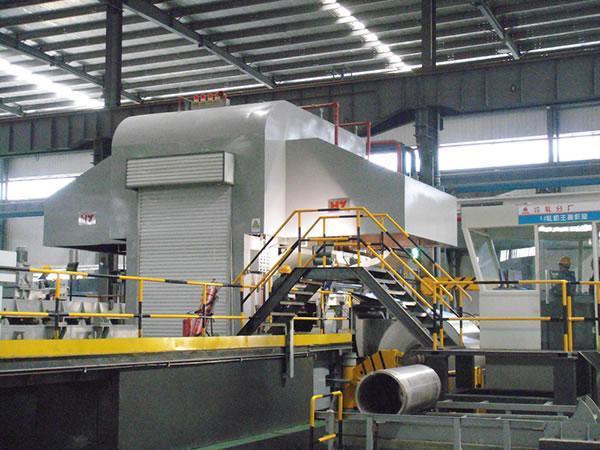

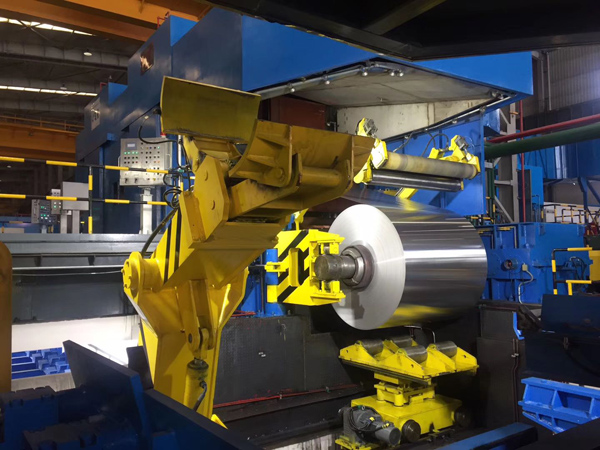

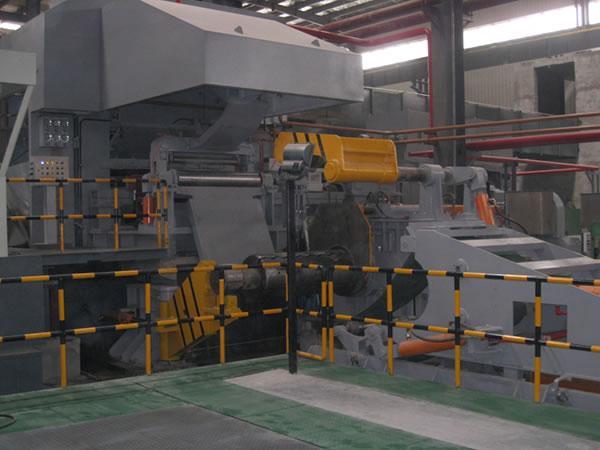

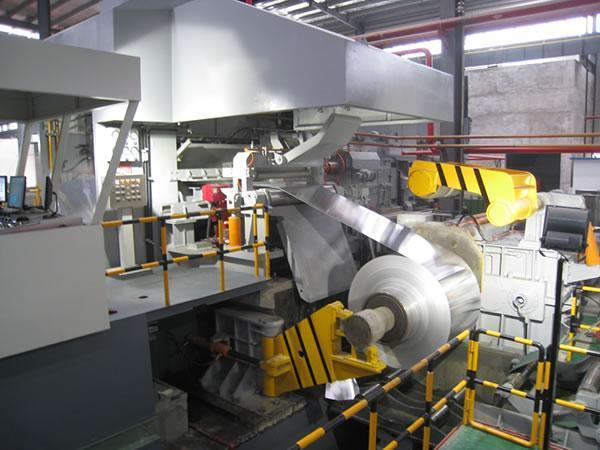

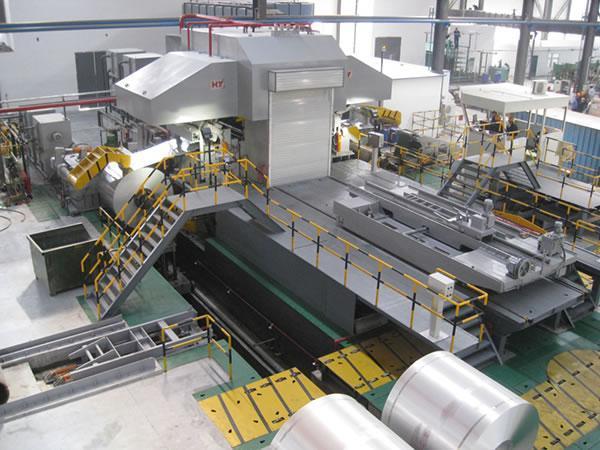

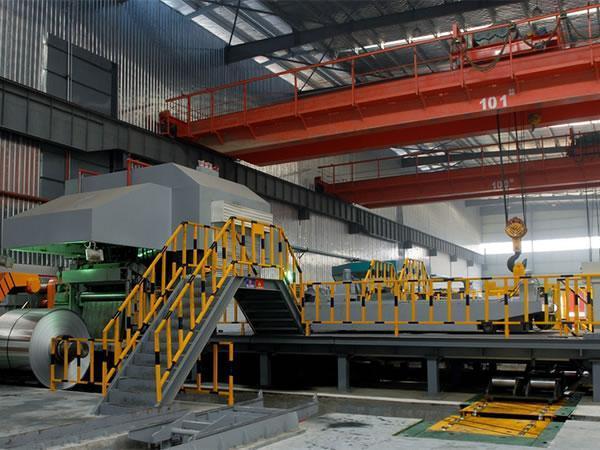

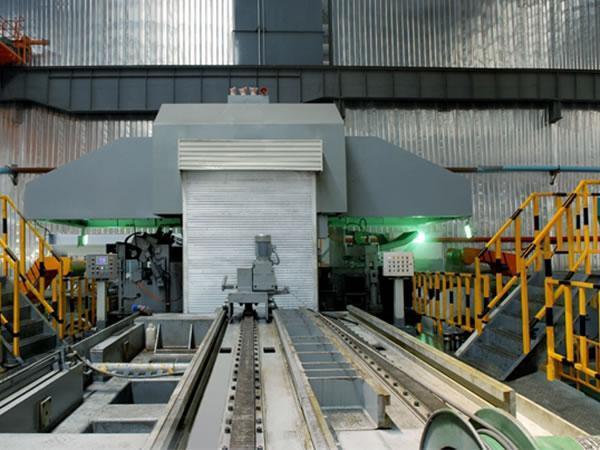

Aluminum Cold Rolling Mill

  • 380mm × 960mm × 1550mm 4-stand non-reversing cold rolling mill
  • 420mm × 1100mm × 1900mm 4-stand non-reversing aluminum rolling machine
  • 500mm × 1350mm × 2300mm 4-stand non-reversing aluminum cold rolling mill

For processing semi-finished aluminum castings like ingots, billets, and slabs into thin aluminum coils or foils, reversing rolling mill may be an ideal option for medium and small scale manufacturers, being easily adjustable and cost-saving. But for higher production efficiency, non-reversing aluminum rolling mill would be the best choice.

At Hongye, a Chinese aluminum machinery manufacturer with 15 years' experience, you will find aluminum processing equipment that satisfies your individual needs.

We provide 4-roll and 6-roll non-reversing rolling mills that vary in production capacity. For materials fed in this equipment, the width should be no more than 1950mm and the thickness ranges from 6mm to 10mm. The max allowable coil weight is up to 25 tons. Our cold mill operates at a max speed of 1000m/min. AGC/AFC system is available for option.

The finished aluminum foil processed by our cold rolling mill is up to 0.08m thick. For higher requirements, the thickness could be 0.006mm.

Cold Rolling Mill Specification

  • Type of rolling mill: 4-roll and 6-roll non-reversing rolling machine
  • Equipment dimension (width): 1450mm, 1600mm, 1850mm, 2000mm, 2300mm (max)
  • Aluminum alloy: 1000, 3000, 5000, and 8000 series
  • Thickness (raw material): 6-10mm
  • Width (raw material): 720mm-1950mm
  • Coil diameter: 1400mm-3200mm
  • Coil weight: 6-25t
  • Roll force: 500-2000t
  • Max speed: 1000m/min
  • Thickness (finished product): 0.08mm-0.2mm
  • Optional: AGC/AFC system
  • 380mm × 960mm × 1550mm 4-stand non-reversing cold rolling mill
  • 380mm × 960mm × 1550mm 4-stand non-reversing cold rolling mill
  • 420mm × 1100mm × 1900mm 4-stand non-reversing aluminum rolling machine
  • 500mm × 1350mm × 2300mm 4-stand non-reversing aluminum cold rolling mill
  • 500mm × 1350mm × 2300mm 4-stand non-reversing aluminum cold rolling mill

Brief Description
Hongye is aluminum sheet processing equipment and aluminum foil coil mill and aluminum coil rewinder, coil sliter, the Hongye industrial aluminum processing equipment is experienced market test, we have mind of how to serve customers aftersales, we know what problems you may meet, and we prepared a package of troubleshooting solution for you, we offer aluminum rolling mill both in cold rolling and hot rolling for your aluminum processing plant.
