Finished Aluminum Processing Equipment

    1. Aluminum Rewinding Machine
      Aluminum rewinder in an aluminum production line is set to either produce the material ready for sale, or to prepare the coils for downstream cold rolling process. It enables an improved working efficiency. Our rewinder operates at a speed of 400m/min. Raw material used for rewinding ranges in thickness from 0.2mm to 2.0mm.

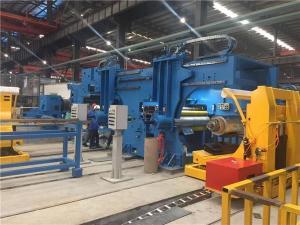

    1. High Speed Aluminum Slitter Rewinder
      High speed aluminum slitter is suitable for slitting 1000, 3000, 5000, and 8000 series alloy plates into narrow aluminum strips. The raw plates to be processed range in thickness from 0.15mm to 0.6mm, and should be no wider than 2030mm. This aluminum slitting machine runs at 400m/min. Width of the finished product is between 700mm and 1025mm.
    1. Aluminum Tension Leveling Line
      Machine width: 1450mm, 1600mm, 1900mm, 2200mm
      Driving system: full AC drive/full DC drive
      Aluminum alloy: 1000, and 8000 series
      Thickness (raw material): 0.1mm-3.0mm; 0.006mm (min)
    1. Aluminum Slitting Line
      Our aluminum slitting equipment is used in aluminum processing line for thin strip and large number of cuts as well as for medium-gauge strip. The number of cuts is 10, and thickness of the raw material ranges from 0.5mm to 3.0mm. The equipment operates at a max speed of 200mm/min.
    1. Aluminum Foil Slitting Machine
      Our high-speed aluminum foil slitting machine allows for a max cuts number of 60. It operates at a max speed of 1000m/min.
      Aluminum alloy: 1000, 3000, 5000, and 4000 series
      Material thickness: 0.4mm (max)
      Speed: 1000m/min
    1. Aluminum Cut-To-Length Line
      Aluminum cut-to-length line is used to uncoil the rolled aluminum coil, level it, and then cut it to the required length. Thickness of the material to be processed is from 4mm to 12mm; and cut length ranges from 2m to 12m. The highest speed of the cut-to-length machine reaches 20m/min.

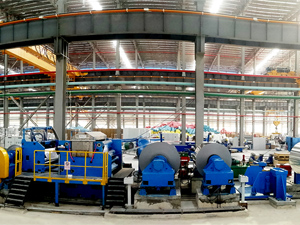

    1. Aluminum Foil Doubler Machine
      An aluminum foil doubler machine is designed to uncoil aluminum foils whose thickness is between 0.012mm and 0.04mm, to spray oil and trim them, and then to double the foils, as a preparation for the last rolling pass. It processes aluminum with a wide range of thickness into large-diameter rolls, with high productivity and slitting accuracy.
    1. Aluminum Foil Separator Machine
      Vertical foil separator operates at an ultra-high speed of 1000m/min, and allows for 6 cuts at most. The largest diameter of the finished aluminum coil is up to 1000mm.
      Material thickness: 0.02-0.06mm (single layer), 0.005-0.03mm (double layer)
      Material width: 700mm-1950mm

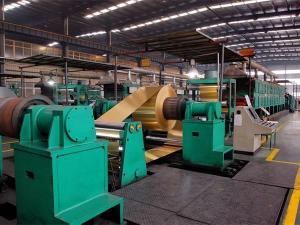

    1. Hydrophilic Aluminum Foil Coating Line
      Hydrophilic coating means creating a highly hydrophilic functionalized nanoscale surface on metal foil, which will then attract water and allow it to easily penetrate the aluminum surface. Hydrophilic foil is widely used for air conditioner, freezer, and radiating fin.

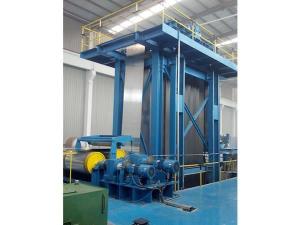

    1. Aluminum Coil Continuous Coating Line
      With double-coating double-drying head, it coats both sides of aluminum plates. Our coil coating machine is able to work continuously at a high speed of 100m/min.
      Material: 1000, 3000, 8000, and 5000 series aluminum alloy
      Other configuration: front and back loop, non-stop lap changing device, continuous production

Company Brief
For making quality aluminum products, such as aluminum sheet coil and foil coil, the aluminum process including aluminum hot and cold rolling, aluminum slitting and rewinding, as well as aluminium coating are necessary and important. HongYe is a Chinese company providing complete set of aluminum processing equipment for those companies who provide aluminum processing services to customers. Our main products include aluminum hot rolling mill, aluminum cold rolling, aluminum slitter rewinders, together with machine installation and commissioning, HongYe provides complete equipment and as a project contractor in customer demands.
