Aluminum Cut-To-Length Line

  • 2400mm cut-to-length line
  • 2400mm cut-to-length line

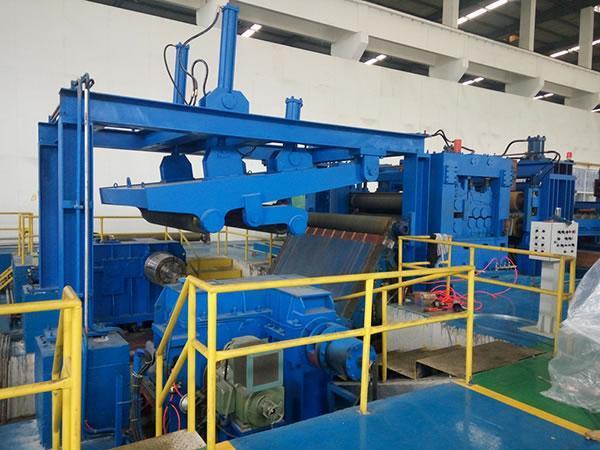

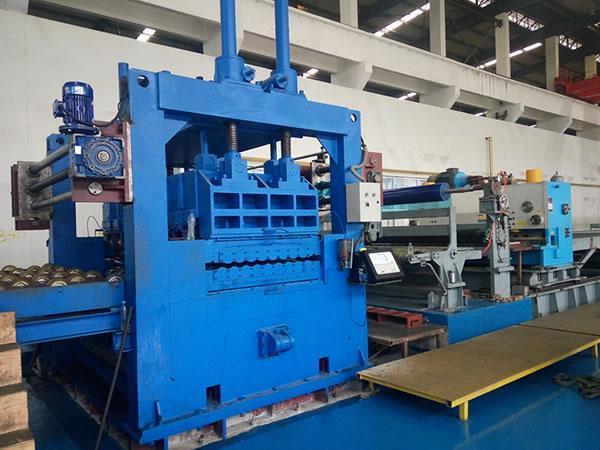

Aluminum cut-to-length line is used to uncoil the rolled aluminum coil, level it, and then cut it to the required length. Thickness of the material to be processed is from 4mm to 12mm; and cut length ranges from 2m to 12m. The highest speed of the cut-to-length machine reaches 20m/min.

Cut-to-Length Line Specification

  • Aluminum, Aluminum alloy (1000, 3000, 8000, and 5000 series)
  • Material thickness: 4-12mm
  • Speed: 20m/min
  • Cuts length: 2m-12m

Brief Description
Hongye offers aluminum finishing equipment for aluminum sheet coil separating to be small coils and rewind the coil with leveling processes, all processes are finished by machines as slitting rewinder, aluminum slitter, aluminum sheet liner, finished equipment is used after aluminum ingots become sheet and foil coils by aluminum processing as hot rolling and cold rolling mill.
